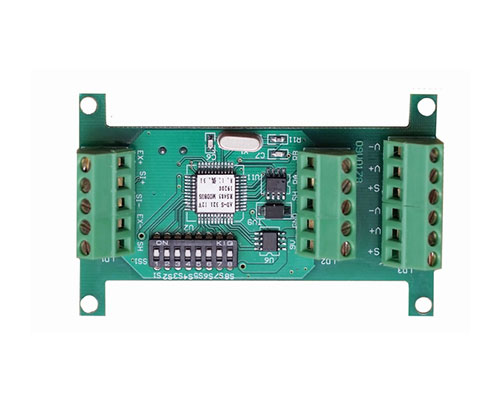

AD-S321-P Modules (Discontinued)
Features and Specifications：
?★? Suitable for belt weigher.;
?★? Measuring range: ±15mV
?★? A/D Resolution:1000000
?★? Temperature coefficient：≤5ppm／℃（typical）
?★? HardwareInterface: RS-485interface, half-duplex.
?★? Software Protocol: Freeport protocol?
?★? Dimensions（mm）：Rectangle：86×55×18
?★? A/D conversion,digital calibration, tare, zero setting/tracking, switch-on zero setting,anti-dithering;
?★? All the parameters can be set through serialinterface;
?★? Module addresses are availablefrom 0 to 31. Modules can work through bus communication;
?★? Baud rate,parity bit and data output format can be set. 1200～38400bps;
?★? Digital filtering: standard filtering or LPF;
?★? Samplingspeed: 3.125～400Hz;
?★? Storage ofthe parameters with protection against power failure;
?★? Operating Voltage: 9V DC; Operating Current:≤40mA;
?★? Complete protection: wrong wiring protection, overvoltage protection, transient voltage suppression;
?★? Operating temperature range: -40℃～+70℃; Storage temperature range: -60℃～+90℃
